Legacy Collection

Has a classic beveled exterior façade

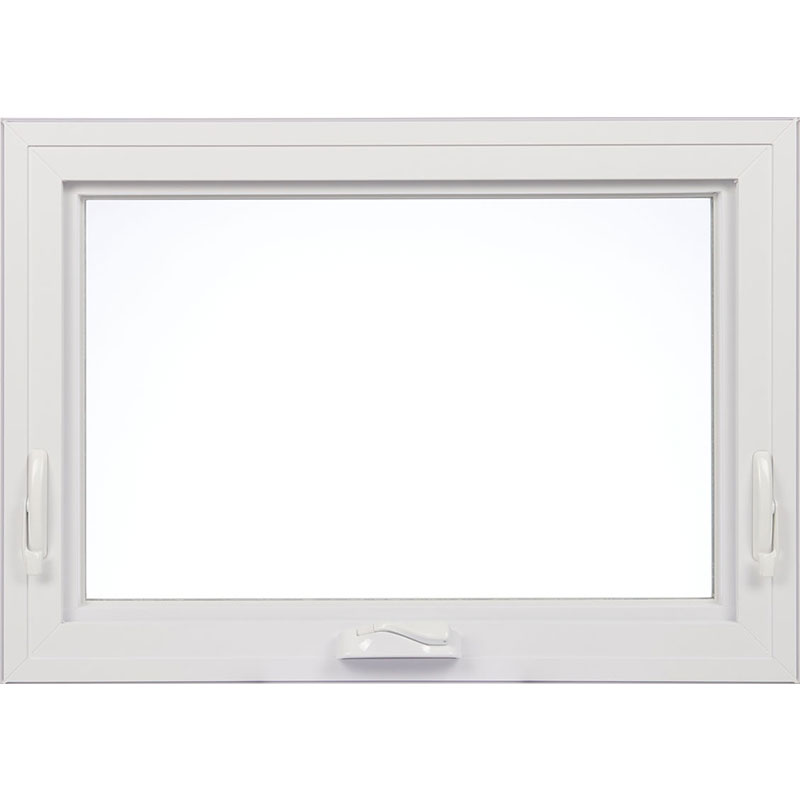

Awning Window

Awning windows open outward from the bottom. This allows the air outside to circulate within your home, ventilating it freely. Awning windows provide a beautiful, unobstructed view, while providing a unique protective shield from the elements.

Our 3 Seal Advantage along with the multi-point locking system and the multi-chambered design ensures the tightest seal.

Legacy Collection

Has a classic beveled exterior façade

Awning Window

Awning windows open outward from the bottom. This allows the air outside to circulate within your home, ventilating it freely. Awning windows provide a beautiful, unobstructed view, while providing a unique protective shield from the elements.

Our 3 Seal Advantage along with the multi-point locking system and the multi-chambered design ensures the tightest seal.

Standard Features

Integrated Snap-down nesting handle

Multi-point locking system

Snap-in removable screen for easy cleaning

Fusion-welded frame and sash for added strength and prevention of air infiltration & exterior beveled design for a modern appearance

Sash Opens 45° for Increased Air Circulation, Even on Rainy Days

TRUTH Hardware stainless steel hinges

Additional Standard Features

  • Shadow groove cleaned corners
  • Interior multi-chamber design which provide maximum strength as well as a high insulating factor
  • Integrated screw chambers for the hardware as well as installation purposes
  • Two steps interior frame finish for a modern look
  • Two soft, white bubble seals connected to the frame to ensure a great level of protection for your home against the elements
  • Outside two fins brush seal on the sash to affirm protection of your home against the elements
  • Integrated self-drainage system

Energy Ratings

ModelBrandENERGY STAR Most Efficient 2021U-factor (W/m2 – K)Solar Heat Gain (SHGC)Energy Rating
L-AW- TG,CLR/LOE272/CLRWeather Seal WindowsN1.160.331
L-AW- TG,CLR/CLR/LOE180- GRLWeather Seal WindowsN1.170.3735
L-AW- TG,CLR/LOE272/CLR- GRLWeather Seal WindowsN1.160.2730
L-AW-DG,LOE180/I89Weather Seal WindowsN1.320.4134
L-AW- TG,CLR/CLR/LOE180Weather Seal WindowsN1.150.437
L-AW- TG,LOE180/LOE180/I89Weather Seal WindowsY0.90.3540
L-AW- TG,LOE180/CLR/LOE180Weather Seal WindowsY0.960.3639
ModelBrandENERGY STAR Most Efficient 2021U-factor (W/m2 – K)Solar Heat Gain (SHGC)Energy Rating
L-AW- TG,LOE180/LOE180/I89- GRLWeather Seal WindowsY0.910.3238
L-AW- TG,LOE180/CLR/LOE180- GRLWeather Seal WindowsY0.970.3337
L-AW- TG,CLR/LOE272/272Weather Seal WindowsY0.940.2634
L-AW- TG,CLR/LOE272/272- GRLWeather Seal WindowsY0.950.2432
AW- TG,CLR/CLR/LOE180Weather Seal WindowsN1.30.434
AW- TG,LOE180/CLR/LOE180Weather Seal WindowsN1.120.3636
AW- TG,LOE180/CLR/LOE180- GRLWeather Seal WindowsN1.150.3333

360° View of Window

0%

    Become a Dealer

    Become a registered dealer with weather seal and rest assured you are getting cutting-edge windows, next level customer service and the industry's best warranty.

    Warranty Information

    DOUBLE INSULATED GLASS

    Standard Glass: DOUBLE INSULATED GLASS Overall Thickness 7/8"

    TRIPLE INSULATED GLASS

    Optional Glass: TRIPLE INSULATED GLASS Overall Thickness 1 3/8"

    Click each logo to learn more about each glass option

    SuperSpacer® Premium Plus

    Weather Seal uses SuperSpacer Premium Plus for all its manufactured windows, designed  specifically for the North American climate. SuperSpacer Premium Plus, provides the warmest, highest performance glass spacer on the market. SuperSpacer Premium Plus warm edge spacer is made of high-performance silicone material with integrally incorporated desiccant  – which many designers and architects prefer. Even with its aesthetically pleasing narrow sightline, SuperSpacer Premium Plus delivers high wind load resistance, exceptional thermal performance, argon gas retention and long-term durability.
    Watch Video

    Standard Exterior Colours

    White

    Optional Exterior Colours

    Sandalwood

    Commercial Brown

    Black

    Available Custom Colours

    Flat 5/16"



    Flat 5/8"



    Flat 1"



    Pencil 3/8"



    7/8" Contour Flat SDL



    1 1/4" Contour Flat SDL



    2" Contour Flat SDL



    Georgian 3/4"



    Georgian 1"



    Wood Jamb Extensions

    Wood Jamb Extensions

    Vinyl Jamb Extensions

    Vinyl Jamb Extensions

    Casing & Rosettes
    2 3/8" Casing with Round Rosette
    3 3/8"Casing with Round Rosette
    3 3/8" Casing with Straight Rosette
    3 3/8" Flat Casing with Flat Rosette
    Brickmoulds
    1/8" Brickmould
    3/8" Bull Nose
    3/4" Brickmould
    1 1/4" Brickmould with Nailing Fin
    1 1/4" Brickmould
    1 1/2" Brickmould
    2" Brickmould
    1 1/4" Brickmould with 2" Slopped Sill
    1 1/2" Brickmould with 2" Slopped Sill
    2" Brickmould with 2" Slopped Sill
