Quad-Seal Collection

Provides you with a modern contemporary flat exterior look

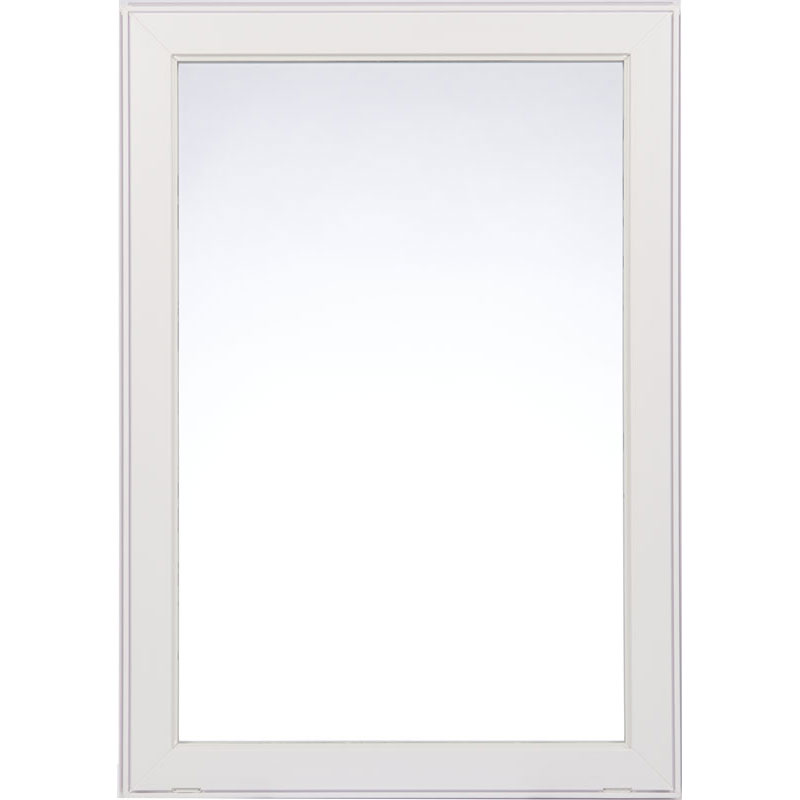

Picture Window

A Picture Window is frequently referred to as “Slim Profile” and it is a window that cannot be opened. It’s function is limited to allowing light to enter the room. It is also designed and built on the single slider profile. Consequently, it’s interior and exterior appearances are very similar to the single slider and single hung window. Therefore, it is recommended to be used in a combination together with the single hung or single slider windows when needed.

Picture windows can also be used as transom fixed units. This type of window is used in situations where light or visibility alone is needed as no ventilation is possible.

Quad-Seal Collection

Provides you with a modern contemporary flat exterior look

Picture Window

A Picture Window is frequently referred to as a “Slim Profile” window and it is a window that cannot be opened. It’s function is limited to allowing light to enter the room. It is also designed and built on the single slider profile. Consequently, it’s interior and exterior appearances are very similar to the single slider and single hung window. Therefore, it is recommended to be used in a combination together with the single hung or single slider windows when needed.

Picture windows can also be used as transom fixed units. This type of window is used in situations where light or visibility alone is needed as no ventilation is possible.

Standard Features

  • Our exclusive Quad-Seal System® ensures a superior seal
  • Shadow groove cleaned corners
  • 7/8” insulated thermal dual-seal glass with Quanex Super spacer for optimum efficiency
  • Integrated self-drainage system
  • Interior Heritage glazing with modern co-extruded seal technology for a classic craftsmanship finish
  • Insulated thermal dual-seal glass with Super Spacer for optimum efficiency
  • Multi-chamber design that provides maximum strength to the window as well as a high level of insulation
  • Bright white interior and exterior finished colour
  • 3 1/4″ vinyl frame
  • Appointed screw chambers for installation purposes and interior removable covers designed to hide installation screws
  • Sloped outside finish ensures easy outside water drainage

Energy Ratings

ModelBrandENERGY STAR Most Efficient 2021U-factor (W/m2 – K)Solar Heat Gain (SHGC)Energy Rating
WEATHERSEA150 A- CL-CG7568-ARGWeather Seal WindowsN1.650.5737
PW-DG,CLR/LOE180Weather Seal WindowsN1.580.5738
PW-DG,CLR/LOE180- GRLWeather Seal WindowsN1.630.5234
PW-DG,LOE180/LOE180Weather Seal WindowsN1.520.5136
PW-TG,LOE180S2/CLR/ LOE180S5-7/8Weather Seal WindowsN1.270.4739
PW-DG,CLR/LOE180S3- 7/8Weather Seal WindowsN1.580.5738
PW-DG- LOE180S2/LOE180S3-7/8Weather Seal WindowsN1.530.5236

360° View of Window

0%

    Become a Dealer

    Become a registered dealer with weather seal and rest assured you are getting cutting-edge windows, next level customer service and the industry's best warranty.

    Warranty Information

    DOUBLE INSULATED GLASS

    Standard Glass: DOUBLE INSULATED GLASS Overall Thickness 7/8"

    TRIPLE INSULATED GLASS

    Optional Glass: TRIPLE INSULATED GLASS Overall Thickness 7/8"

    Click each logo to learn more about each glass option

    SuperSpacer® Premium Plus

    Weather Seal uses SuperSpacer Premium Plus for all its manufactured windows, designed  specifically for the North American climate. SuperSpacer Premium Plus, provides the warmest, highest performance glass spacer on the market. SuperSpacer Premium Plus warm edge spacer is made of high-performance silicone material with integrally incorporated desiccant  – which many designers and architects prefer. Even with its aesthetically pleasing narrow sightline, SuperSpacer Premium Plus delivers high wind load resistance, exceptional thermal performance, argon gas retention and long-term durability.
    Watch Video

    Standard Exterior Colours

    White

    Optional Exterior Colours

    Sandalwood

    Commercial Brown

    Black

    Available Custom Colours

    Flat 5/16"



    Flat 5/8"



    Flat 1"



    Pencil 3/8"



    7/8" Contour Flat SDL



    1 1/4" Contour Flat SDL



    2" Contour Flat SDL



    Georgian 3/4"



    Georgian 1"



    Wood Jamb Extensions

    Wood Jamb Extensions

    Vinyl Jamb Extensions

    Vinyl Jamb Extensions

    Casing & Rosettes
    2 3/8" Casing with Round Rosette
    3 3/8"Casing with Round Rosette
    3 3/8" Casing with Straight Rosette
    3 3/8" Flat Casing with Flat Rosette
    Brickmoulds
    1/8" Brickmould
    3/8" Bull Nose
    3/4" Brickmould
    1 1/4" Brickmould with Nailing Fin
    1 1/4" Brickmould
    1 1/2" Brickmould
    2" Brickmould
    1 1/4" Brickmould with 2" Slopped Sill
    1 1/2" Brickmould with 2" Slopped Sill
    2" Brickmould with 2" Slopped Sill
