Quad-Seal Collection

Provides you with a modern contemporary flat exterior look

Fixed Casement Window (F175)

Our Fixed Casement Windows are designed with a structural frame to accommodate larger openings, creating a spectacular visual effect. Combined with other window styles, fixed casement windows create an elegant expanse of glass.

With a classic interior contour design that will match the size and appearance of our casement and awning windows, you can expect an attractive, uniform look, and operational versatility.

Quad-Seal Collection

Provides you with a modern contemporary flat exterior look

Fixed Casement Window (F175)

Our Fixed Casement Windows are designed with a structural frame to accommodate larger openings, creating a spectacular visual effect. Combined with other window styles, fixed casement windows create an elegant expanse of glass.

With a classic interior contour design that will match the size and appearance of our casement and awning windows, you can expect an attractive, uniform look, and operational versatility.

Standard Features

  • Our exclusive Quad-Seal System® ensures a superior seal
  • Shadow groove cleaned corners
  • 7/8” insulated thermal dual-seal glass with Quanex Super spacer for optimum efficiency
  • Integrated self-drainage system
  • Interior Heritage glazing with modern co-extruded seal technology for a classic craftsmanship finish
  • Insulated thermal dual-seal glass with Super Spacer for optimum efficiency
  • Multi-chamber design that provides maximum strength to the window as well as a high level of insulation

Energy Ratings

Model Brand ENERGY STAR Most Efficient 2020 – 2025 U-factor (W/m² – K) Solar Heat Gain (SHGC) Energy Rating
QFCK-180ESC-KRY90-CL-KRY90-180ESC3MM-(1.375) Weather Seal Windows Y 0.89 0.45 47
FC-TG,LOE180/CLR/LOE180 Weather Seal Windows Y 1.11 0.43 41
QFCK-366-ARG97-CL-ARG97-3663MM-(1.375) Weather Seal Windows Y 0.86 0.18 32
QFCK-366-ARG97-CL-ARG97-3663MM-(1.375)-GRL Weather Seal Windows Y 0.86 0.17 31
QFCK-CL-ARG97-CL-ARG97-DI893MM-(1.375) Weather Seal Windows Y 1.08 0.49 45
QFCK-CL-ARG97-CL-ARG97-DI893MM-(1.375)-GRL Weather Seal Windows Y 1.08 0.44 42
QFCK-CL-KRY90-CL-KRY90-DI893MM-(1.375) Weather Seal Windows Y 1.04 0.49 46
QFCK-CL-KRY90-CL-KRY90-DI893MM-(1.375)-GRL Weather Seal Windows Y 1.04 0.44 43
QFCK-180ESC-ARG97-CL-ARG97-I893MM-(1.375) Weather Seal Windows Y 1.04 0.46 44
QFCK-180ESC-ARG97-CL-ARG97-I893MM-(1.375)-GRL Weather Seal Windows Y 1.04 0.41 41
QFCK-CL-ARG97-DI89-3MM-(0.875) Weather Seal Windows Y 1.36 0.55 42
QFCK-CL180ESC-ARG97-I89-3MM-(0.75) Weather Seal Windows Y 1.27 0.49 40
QFCK-CL180ESC-ARG97-I89-3MM-(0.875) Weather Seal Windows Y 1.29 0.5 41
QFCK-CL-ARG97-CL-ARG97-180ESC3MM-(1.375) Weather Seal Windows Y 1.16 0.48 42
QFCK-180ESC-ARG97-CL-ARG97-180ESC3MM-(1.375) Weather Seal Windows Y 0.94 0.45 45
QFCK-180ESC-ARG97-CL-ARG97-180ESC3MM-(1.375)-GRL Weather Seal Windows Y 0.94 0.4 43
LFCK-180ESC-ARG97-I89-3-0.875 Weather Seal Windows Y 1.28 0.49 40
LFCK-180ESC-KRY90-I89-3-0.875 Weather Seal Windows Y 1.25 0.49 41
LFCK-CLR-ARG97-LFCK-CLR-ARG97-180ESC-3-1.375 Weather Seal Windows Y 1.15 0.48 43
LFCK-CLR-ARG97-LFCK-CLR-ARG97-180ESC-3-1.375-GRL Weather Seal Windows Y 1.15 0.43 40
LFCK-180ESC-ARG97-CLR-ARG97-180ESC-3-1.375 Weather Seal Windows Y 0.93 0.45 46
LFCK-180ESC-ARG97-CLR-ARG97-180ESC-3-1.375-GRL Weather Seal Windows Y 0.93 0.4 43
LFCK-180ESC-KRY90-CLR-KRY90-180ESC-3-1.375 Weather Seal Windows Y 0.89 0.45 47
LFCK-180ESC-KRY90-CLR-KRY90-180ESC-3-1.375-GRL Weather Seal Windows Y 0.89 0.4 44
LFCK-366-ARG97-CLR-ARG97-366-3-1.375 Weather Seal Windows Y 0.86 0.18 32
LFCK-366-ARG97-CLR-ARG97-366-3-1.375-GRL Weather Seal Windows Y 0.86 0.17 31
LFCK-CLR-ARG97-CLR-ARG97-DI89-3-1.375 Weather Seal Windows Y 1.07 0.49 45
LFCK-CLR-ARG97-CLR-ARG97-DI89-3-1.375-GRL Weather Seal Windows Y 1.07 0.44 42
LFCK-CLR-KRY90-CLR-KRY90-DI89-3-1.375 Weather Seal Windows Y 1.03 0.49 46
LFCK-CLR-KRY90-CLR-KRY90-DI89-3-1.375-GRL Weather Seal Windows Y 1.03 0.44 43
LFCK-180ESC-ARG97-CLR-ARG97-I89-3-1.375 Weather Seal Windows Y 1.03 0.45 43
LFCK-180ESC-ARG97-CLR-ARG97-I89-3-1.375-GRL Weather Seal Windows Y 1.03 0.41 41
L-FC-DG,LOE180/I89 Weather Seal Windows Y 1.27 0.48 40
L-FC-TG,CLR/LOE272/272 Weather Seal Windows Y 0.87 0.31 39
L-FC-TG,CLR/LOE272/272-GRL Weather Seal Windows Y 0.89 0.28 36
L-FC-TG,LOE180/LOE180/I89 Weather Seal Windows Y 0.83 0.41 45
L-FC-TG,LOE180/LOE180/I89-GRL Weather Seal Windows Y 0.84 0.37 43
L-FC-TG,CLR/CLR/LOE180 Weather Seal Windows Y 1.13 0.47 42
L-FC-TG,LOE180/CLR/LOE180 Weather Seal Windows Y 0.9 0.43 45
L-FC-TG,LOE180/CLR/LOE180-GRL Weather Seal Windows Y 0.92 0.39 42
QFCK-180ESC-KRY90-CL-KRY90-180ESC3MM-(1.375)-GRL Weather Seal Windows Y 0.89 0.4 44
WEATHERSEA175A-CL-CG7568-ARG Weather Seal Windows N 1.58 0.52 35
QFCK-CL-ARG97-QFCK-CL-ARG97-2723MM-(1.375) Weather Seal Windows N 1.12 0.36 36
QFCK-CL-ARG97-QFCK-CL-ARG97-2723MM-(1.375)-GRL Weather Seal Windows N 1.12 0.32 34
QFCK-CL-ARG97-CL-ARG97-3663MM-(1.375) Weather Seal Windows N 1.09 0.29 33
QFCK-CL-ARG97-CL-ARG97-3663MM-(1.375)-GRL Weather Seal Windows N 1.09 0.26 31
CL-ARG97-180ESC-3MM-(0.75) Weather Seal Windows N 1.51 0.54 38
CL-ARG97-180ESC-3MM-(0.75)-GRL Weather Seal Windows N 1.51 0.49 35
CL-ARG97-180ESC-3MM-(0.875) Weather Seal Windows N 1.54 0.54 37
CL-ARG97-180ESC-3MM-(0.875)-GRL Weather Seal Windows N 1.54 0.49 35
CL-ARG97-180ESC-4MM(0.875) Weather Seal Windows N 1.52 0.53 37
CL-ARG97-180ESC-4MM(0.875)-GRL Weather Seal Windows N 1.52 0.47 34
QFCK-180ESC-ARG97-180ESC-3MM-(0.75) Weather Seal Windows N 1.45 0.49 37
QFCK-180ESC-ARG97-180ESC-3MM-(0.75)-GRL Weather Seal Windows N 1.45 0.44 34
QFCK-180ESC-ARG97-180ESC-3MM-(0.875) Weather Seal Windows N 1.47 0.49 36
QFCK-180ESC-ARG97-180ESC-4MM(0.875) Weather Seal Windows N 1.46 0.48 36
QFCK-180ESC-KRY90-180ESC-3MM-(0.875) Weather Seal Windows N 1.43 0.49 37
QFCK-180ESC-KRY90-180ESC-3MM-(0.875)-GRL Weather Seal Windows N 1.43 0.44 34
QFCK-CL-ARG97-DI89-3MM-(0.875)-GRL Weather Seal Windows N 1.36 0.49 39
QFCK-CL180ESC-ARG97-I89-3MM-(0.75)-GRL Weather Seal Windows N 1.27 0.44 38
QFCK-CL180ESC-ARG97-I89-3MM-(0.875)-GRL Weather Seal Windows N 1.29 0.44 37
QFCK-CL-ARG97-CL-ARG97-180ESC3MM-(1.375)-GRL Weather Seal Windows N 1.16 0.43 39
LFCK-CLR-ARG97-180ESC-3-0.875 Weather Seal Windows N 1.53 0.54 38
LFCK-CLR-ARG97-180ESC-3-0.875-GRL Weather Seal Windows N 1.53 0.48 34
LFCK-CLR-KRY90-180ESC-3-0.875 Weather Seal Windows N 1.48 0.54 39
LFCK-CLR-KRY90-180ESC-3-0.875-GRL Weather Seal Windows N 1.48 0.48 35
LFCK-180ESC-ARG97-180ESC-3-0.875 Weather Seal Windows N 1.46 0.49 36
LFCK-180ESC-KRY90-180ESC-3-0.875 Weather Seal Windows N 1.42 0.49 37
LFCK-180ESC-KRY90-180ESC-3-0.875-GRL Weather Seal Windows N 1.42 0.44 34
LFCK-180ESC-ARG97-I89-3-0.875-GRL Weather Seal Windows N 1.28 0.44 37
LFCK-180ESC-KRY90-I89-3-0.875-GRL Weather Seal Windows N 1.25 0.44 38
LFCK-CLR-ARG97-CLR-ARG97-272-3-1.375 Weather Seal Windows N 1.11 0.36 36
LFCK-CLR-ARG97-CLR-ARG97-272-3-1.375-GRL Weather Seal Windows N 1.11 0.32 34
LFCK-CLR-ARG97-CLR-ARG97-366-3-1.375 Weather Seal Windows N 1.08 0.29 33
LFCK-CLR-ARG97-CLR-ARG97-366-3-1.375-GRL Weather Seal Windows N 1.08 0.26 31
LFCK-CLR-ARG97-CLR-ARG97-I89-3-1.375 Weather Seal Windows N 1.32 0.49 39
LFCK-CLR-ARG97-CLR-ARG97-I89-3-1.375-GRL Weather Seal Windows N 1.32 0.44 37
FC-DG,CLR/LOE180 Weather Seal Windows N 1.5 0.52 37
FC-DG,CLR/LOE180-GRL Weather Seal Windows N 1.55 0.48 34
FC-DG,LOE180/LOE180 Weather Seal Windows N 1.45 0.47 35
FC-TG,CLR/CLR/LOE180 Weather Seal Windows N 1.32 0.47 38
FC-TG,CLR/CLR/LOE180-GRL Weather Seal Windows N 1.41 0.43 34
L-FC-DG,LOE180/I89-GRL Weather Seal Windows N 1.29 0.44 37
L-FC-DG,CLR/LOE180 Weather Seal Windows N 1.51 0.53 37
L-FC-DG,CLR/LOE180-GRL Weather Seal Windows N 1.54 0.48 34
L-FC-DG,LOE180/LOE180 Weather Seal Windows N 1.46 0.47 35
L-FC-TG,CLR/LOE272/CLR Weather Seal Windows N 1.14 0.35 35
L-FC-TG,CLR/LOE272/CLR-GRL Weather Seal Windows N 1.14 0.32 33
L-FC-TG,CLR/CLR/LOE180-GRL Weather Seal Windows N 1.16 0.43 39
FC-TG,LOE180/CLR/LOE180-GRL Weather Seal Windows N 1.16 0.39 37

360° View of Window

    Become a Dealer

    Become a registered dealer with weather seal and rest assured you are getting cutting-edge windows, next level customer service and the industry's best warranty.

    Click Here

    Warranty Information

    Click Here

    DOUBLE INSULATED GLASS

    Standard Glass: DOUBLE INSULATED GLASS Overall Thickness 7/8"

    TRIPLE INSULATED GLASS

    Optional Glass: TRIPLE INSULATED GLASS Overall Thickness 1 3/8"



    Click each logo to learn more about each glass option

    SuperSpacer®

    Weather Seal uses SuperSpacer for all its manufactured windows, designed  specifically for the North American climate. SuperSpacer, provides the warmest, highest performance glass spacer on the market. SuperSpacer warm edge spacer is made of high-performance silicone material with integrally incorporated desiccant  – which many designers and architects prefer. Even with its aesthetically pleasing narrow sightline, SuperSpacer delivers high wind load resistance, exceptional thermal performance, argon gas retention and long-term durability.
    Watch Video


    Standard Exterior Colours

    White

    Optional Exterior Colours

    Sandalwood

    Commercial Brown

    Black

    Available Custom Colours

    Flat 5/16"



    Flat 5/8"



    Flat 1"



    Pencil 3/8"



    7/8" Contour Flat SDL



    1 1/4" Contour Flat SDL



    2" Contour Flat SDL



    Georgian 3/4"



    Georgian 1"



    Wood Jamb Extensions

    Wood Jamb Extensions

    Vinyl Jamb Extensions

    Vinyl Jamb Extensions

    Casing & Rosettes
    2 3/8" Casing with Round Rosette
    3 3/8"Casing with Round Rosette
    3 3/8" Casing with Straight Rosette
    3 3/8" Flat Casing with Flat Rosette
    Flat Keystone
    Colonial Keystone

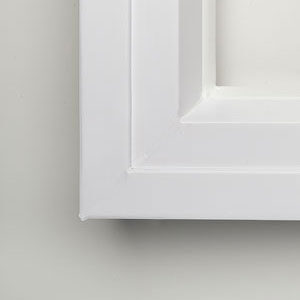

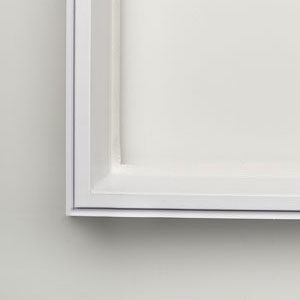

    Brickmoulds
    1/8" Brickmould
    3/8" Bull Nose
    3/4" Brickmould
    1 1/4" Brickmould with Nailing Fin
    1 1/4" Brickmould
    1 1/2" Brickmould
    2" Brickmould
    1 1/4" Brickmould with 2" Slopped Sill
    1 1/2" Brickmould with 2" Slopped Sill
    2" Brickmould with 7/8" Slopped Sill
